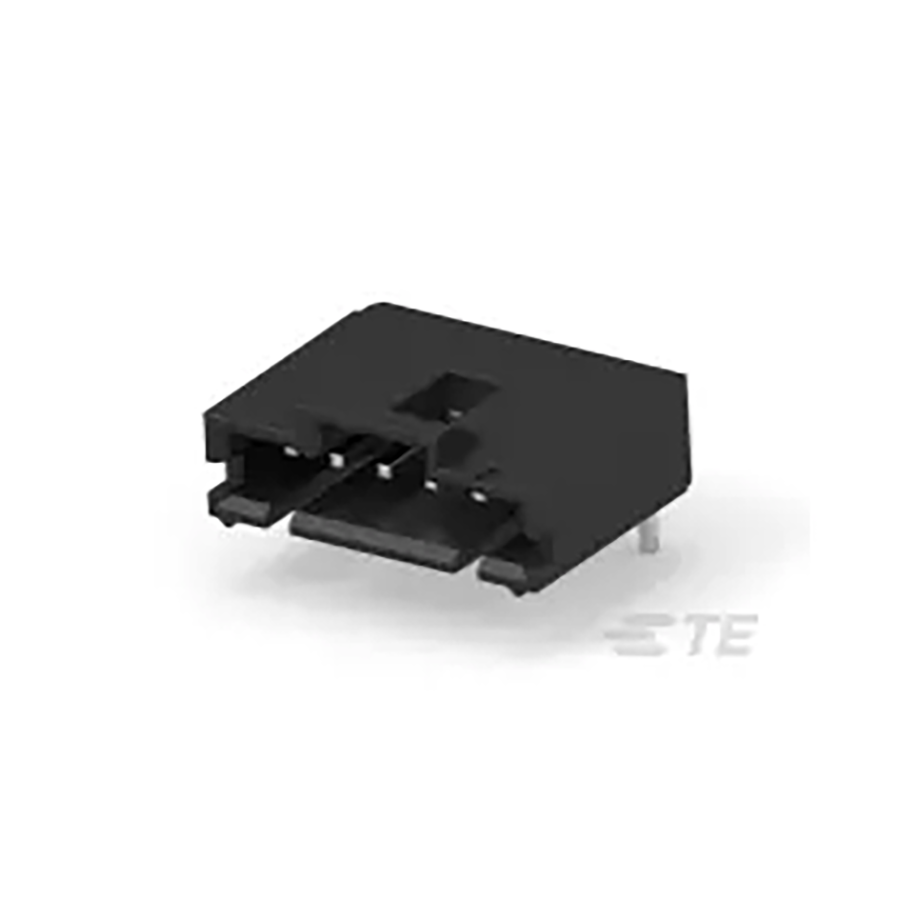

5-103634-5
Manufacturer:
TE Connectivity
Mfr.Part #:
5-103634-5
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Termination | Crimp, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 6.9596 mm |
| Packaging | Tube |
| Voltage Rating | 600 V |
| Depth | 13.59 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Resistance | 15 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Tin |
| Contact Mating Length | 5.842 mm |
| PCB Mounting Orientation | Right Angle |
| Tail Length | 3.3 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Retention | With |
| Contact Finish Thickness - Mating | 2.54 µm |
| Termination Post Length | 3.3 mm |
| PCB Mount Retention | Without |
| PCB Mount Alignment | Without |
Stock: 207
Distributors
pcbx
pcbxUnit Price$0.91392
Ext.Price$0.91392
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91392 | $0.91392 |
| 10 | $0.85151 | $8.51510 |
| 25 | $0.77723 | $19.43075 |
| 50 | $0.70943 | $35.47150 |
| 100 | $0.64754 | $64.75400 |
| 300 | $0.59105 | $177.31500 |
| 500 | $0.53949 | $269.74500 |
| 1000 | $0.49244 | $492.44000 |
